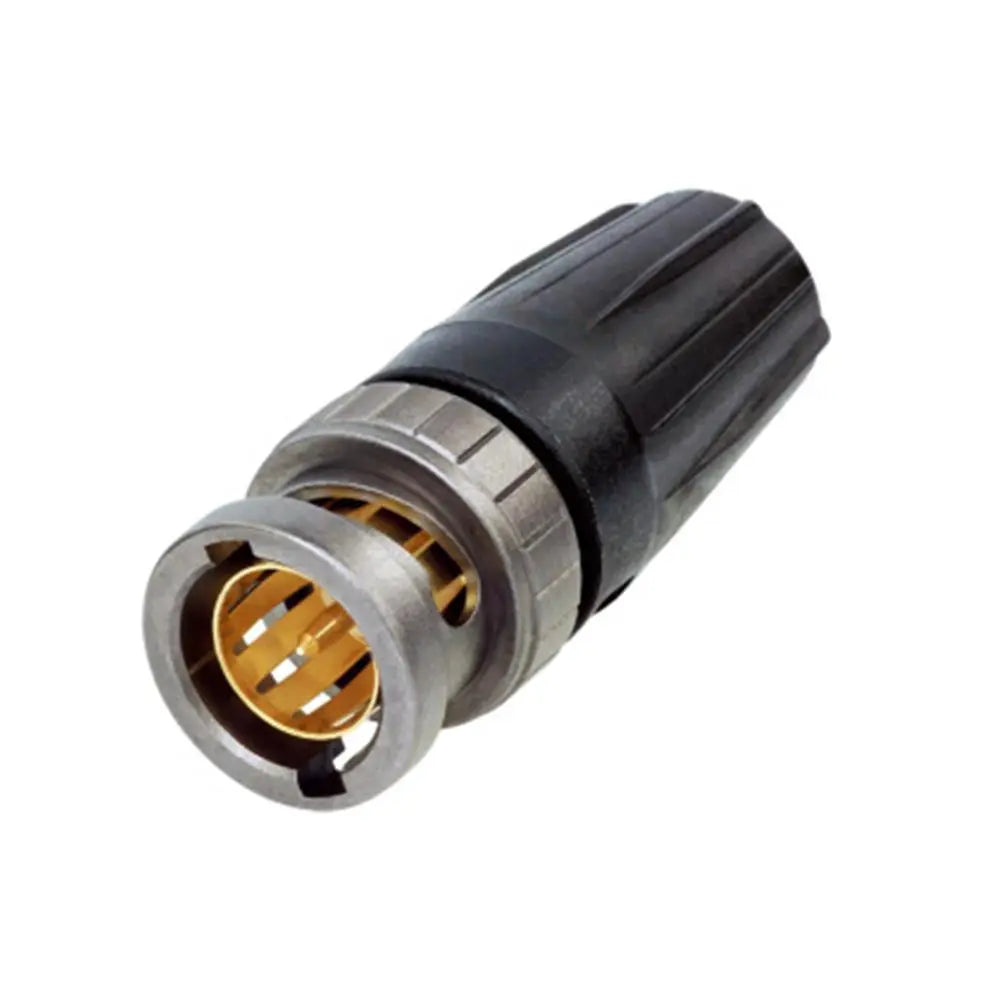

Neutrik NBNC75BLP7X rearTWIST UHD BNC Cable Connector Pin 1.07mm Shield 6.47mm


The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Features & Benefits

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies
rearTWIST UHD BNC Features

Optimized Return Loss

Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.


For more details see Neutrik UHD BNC White Paper.


rearTWIST UHD BNC Return Loss

Crimp Dimensions

In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.

Pin: 1.07 mm
Shield: 6.47 mm
Crimp die:   DIE-R-BNCX-PDG




Approved Cables

To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.

Suitable cables:
Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95


Technical Information

Product
Title NBNC75BLP7X
Connection Type BNC 75 Ω
Gender male
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage < 50 V
VSWR ≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz
Mechanical
Cable O.D. 6.3 mm
Cable retention > 30 N (center)
Crimp size 6.47 Hex crimp (shield)
Crimp size (pin) 1.07 crimp
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell Brass (CuZn39Pb3)
Shell plating Antraloy
Insert PP
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
