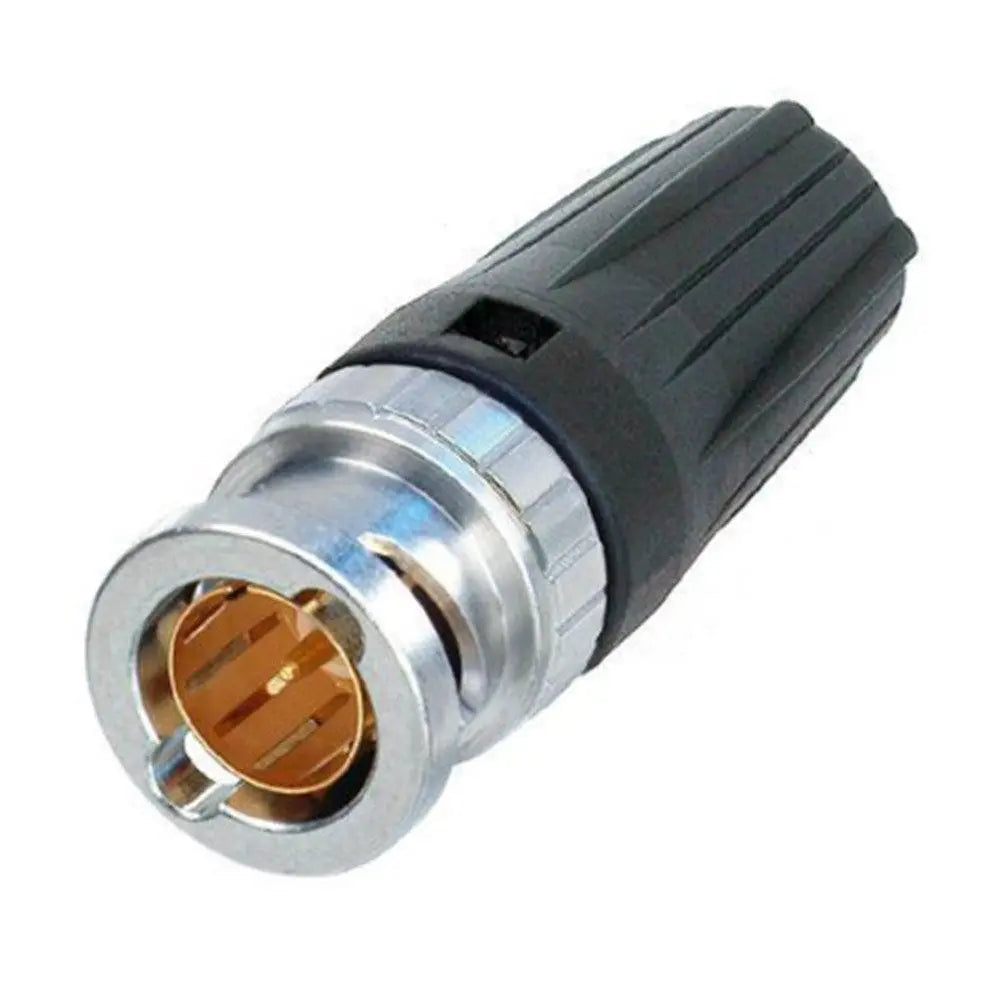

Neutrik NBNC75BRU11 rearTWIST 75-Ohm BNC Cable Connector - suits Belden 1694F


10 items left

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1694F, Clark Wire CD7506F-0, Kabeltronik HFV 1.0/4.8 AF- FRNC

Crimp size:

  • Pin: 1.6 mm (square)
  • Shield: 7.36 mm (hex)

FEATURES & BENEFITS

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies

SPECIFICATIONS

Product

Title

  • NBNC75BRU11

Connection Type

  • BNC 75 Ω

Gender

  • male

Electrical

Contact resistance

  • ≤ 3 mΩ (inner)

Contact resistance

  • ≤ 2 mΩ (outer)

Dielectric strength

  • 1,5 kVdc

Impedance

  • 75 Ω

Insulation resistance

  • > 5 GΩ

Rated voltage

  • <50 V

VSWR

  • ≤1.050/>32 dB up to 1 GHz
  • ≤1.065/>30 dB up to 2 GHz
  • ≤1.100/>26 dB up to 3 Ghz

Mechanical

Cable O.D.

  • < 7.3 mm

Cable retention

  • > 30 N (Center)

Crimp size

  • 7,36 Hex crimp (shield) acc. MIL22520/5-41(A)

Crimp size (pin)

  • 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)

Insertion force

  • < 25 N

Lifetime

  • > 1000 mating cycles

Locking device

  • Bayonett

Cable anchoring

  • Jacket crimping

Material

Contacts

  • Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

Insert

  • PTFE

Shell

  • Brass (CuZn39Pb3)

Shell plating

  • Optalloy®

Environmental

Temperature range

  • -30 °C to +85 °C

Contact crimpability

  • Complies with IEC 60803 and IEC 60352-2
