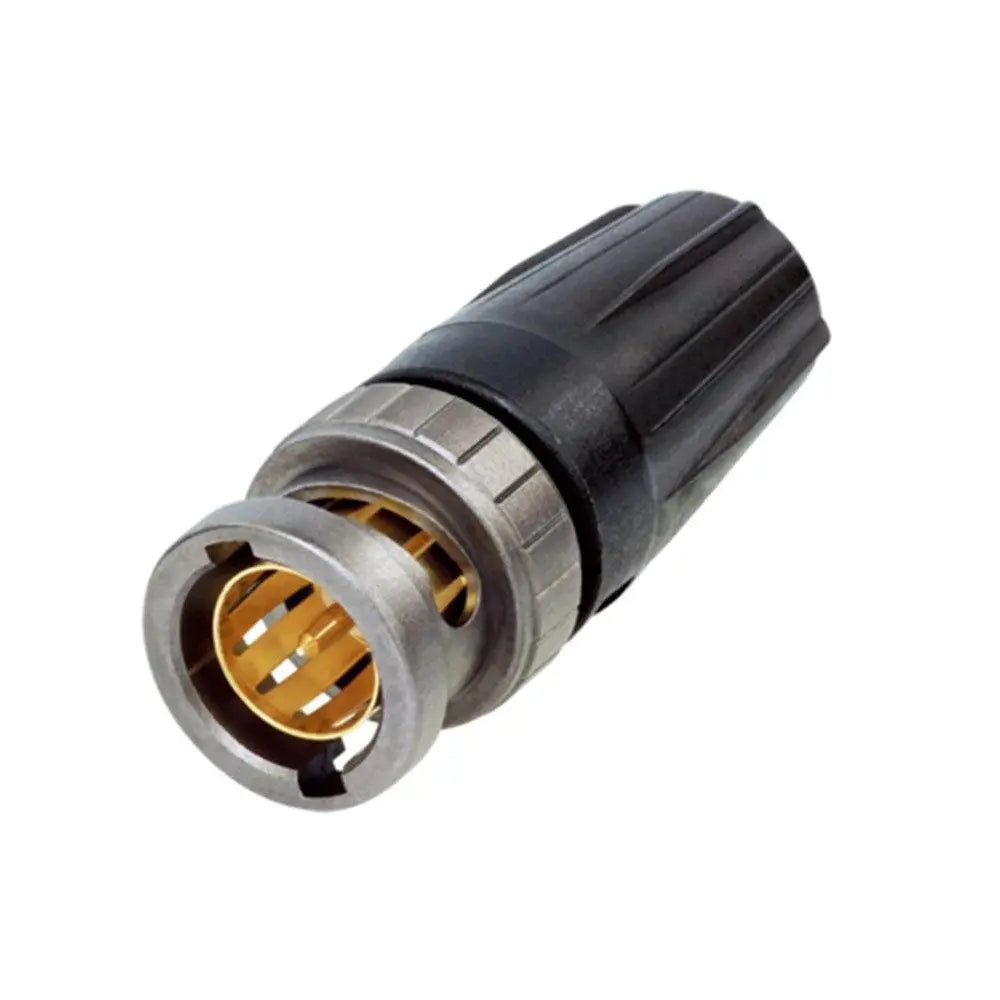

Neutrik NBNC75BZV14X rearTWIST UHD BNC Connector - Suits Belden 4794R


10 items left

The rearTWIST UHD BNC connectors are specifically designed for high-resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Features & Benefits

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

TECHNICAL INFORMATION

Product

  • Title:    NBNC75BZV14X
  • Connection Type:    BNC 75 Ω
  • Gender:    male

Electrical

  • Contact resistance:    ≤ 3 mΩ (inner)
  • Contact resistance:    ≤ 2 mΩ (outer)
  • Dielectric strength:    1.5 kVdc
  • Impedance:    75 Ω
  • Insulation resistance:    > 5 GΩ
  • Rated voltage:    < 50 V
  • VSWR:
    • ≤ 1.6 / > 23 dB up to 6 GHz
    • ≤ 2.3 / >15 dB up to 12 GHz
    • ≤ 3.9 / >12 dB up to 18 GHz

Mechanical

  • Cable O.D.:    8.1 mm
  • Cable retention:    > 30 N (center)
  • Crimp size:    8.23 Hex crimp (shield)
  • Crimp size (pin):    1.6 crimp
  • Insertion force:    < 25 N
  • Lifetime:    > 1000 mating cycles
  • Locking device :   Bayonett
  • Cable anchoring:    Jacket crimping

Material

  • Contacts:    Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
  • Shell:    Brass (CuZn39Pb3)
  • Shell plating:    Antraloy
  • Insert:    PP

Environmental

  • Temperature range:    - 30 °C to +85 °C
  • Contact crimpability:    Complies with IEC 60803 and IEC 60352-2
