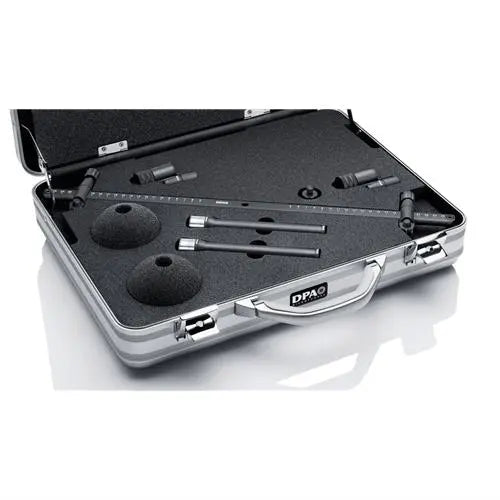

DPA d:dicate™ 4041-SP Stereo Kit


Notify me when this product is available:

Special Order - Request Quote and Factory Lead Time

Features

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 dB dynamic range
  • RF rejection between >60 and >40 dB
  • Linear frequency response
  • High SPL
  • Superior gain before feedback

Specifications

Directional pattern: Omni
Principle of operation: Pressure
Cartridge Type: 24 mm (1 in) condenser w. stainless steel diaphragm
Frequency range, ± 2 dB: 20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ± 2 dB: 70 mV/Pa;-23.1 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 86 dB
Total Harmonic Distortion (THD): <0.5% THD up to 120 dB SPL peak, <1% THD up to 126 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: <200 Ohm
Cable drive capability: Up to 100 m (328 ft)
Current consumption: 2.20 mA
Weight: 190 g (6.7 oz)
Capsule diameter: 24 mm (1 in)
Connector: 3-pin XLR-M (Standard P48)
