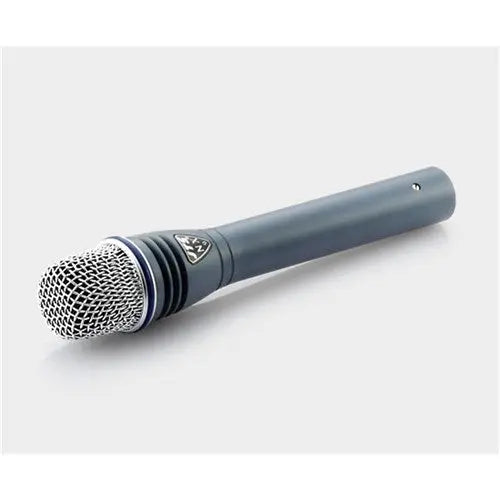

JTS NX-9 Condenser instrument mic


5 items left

NX-9


The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.



SPECIFICATIONS


Type

  • Electret Condenser

Frequency Response

  • 60~18,000 Hz

Polar Pattern

  • Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

  • -70dB*(0.32mV)*0dB=1V/μbar

Output Impedance

  • 400Ω

Phasing

  • Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

  • Three-pin professional audio connector (male XLR type)

Case

  • Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight

  • 230 grams (8.1 oz)

Touch Noise.

  • Super low

Power Supply

  • 9-52V phantom power or battery 1.5V AA
