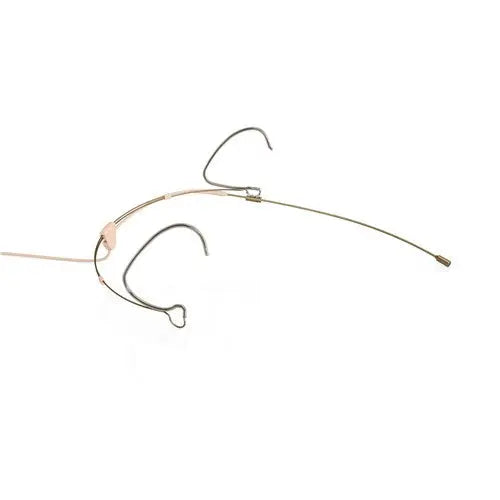

DPA d:fine™ CORE 6066 Subminature Omni Headset Mic, Beige, MicroDot


3 items left

6066 SUBMINIATURE HEADSET MICROPHONE



The capsule of the d:fine™ CORE 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

  • Amazing 3 mm CORE by DPA capsules technology
  • Renowned DPA sound in a 60% smaller capsule
  • One-size-fits-all, headset fits securely and comfortably
  • 2-way adjustable, non-reflective boom with locking system
  • Unique, comfortable 3-point gripping system above, below and behind the ear
  • New 90° cable management constructed to guide the cable and minimize cable breaks

SPECIFICATIONS

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Principle of operation: Pressure
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
  • Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color: Black, beige or brown
  • Weight: 11 g (0.4 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.3 m (4.3 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
