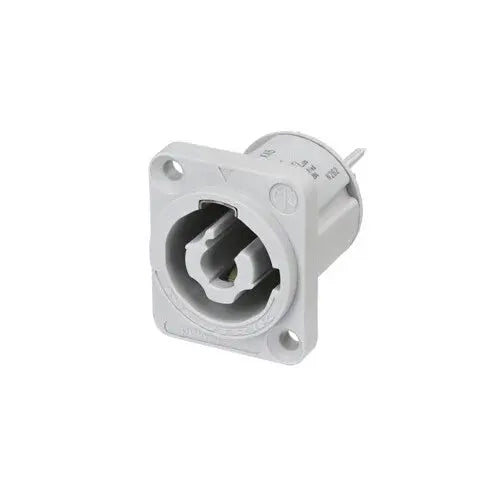

Neutrik NAC3MPXXB powerCON chassis connector, power-out, grey


10 items left

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.

Appliance outlet connector, 3/16" flat tab terminals, grey

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
  • Lockable single phase connector
  • Certified according to IEC 60320-1 & UL 60320-1
  • 3 contacts for line, neutral and premating safety ground
  • Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
  • Fast and easy twist lock latching system
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Extremely robust and reliableIEC 62368-1 compliant
  • UL94 V-0 materials used
