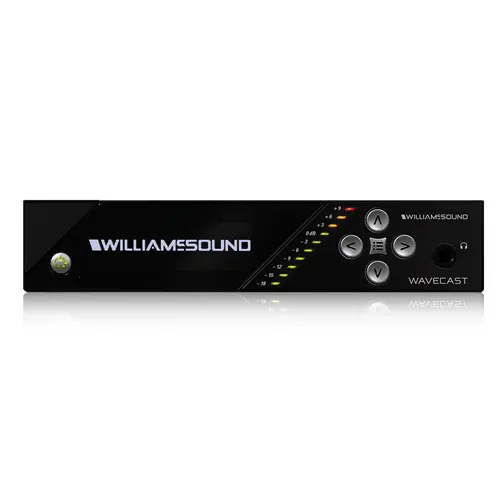

Williams AV Wavecast With Dante WFT5D


Notify me when this product is available:

WaveCAST is built on a hardware-based audio DSP audio system architecture, allowing system optimization to achieve the highest quality audio experience for the particular audio stream being delivered. As a result, hearing assistance can be optimized for hearing loss, music can be optimized for high-fidelity playback, and voice can be set for maximum speech intelligibility. Custom pre-sets can also be established where tweaking is necessary for specific performance applications.

Professional audio inputs on the WaveCAST include 1/4" XLR connectors, phantom power and a line level output jack. In addition to multi-stage gain control inputs, the DSP features include AGC, limiters, high and low pass filter, and adjustable range compressor control. The 16-bit DAC provides a 48Khz sample rate for a smooth digital stream and minimizes the digital harshness that occurs in low-bit-rate DACs used in embedded computer-based assisted listening systems.

The new WaveCAST app provides an easy-to-use, intuitive user interface and will be available in iOS or Android. It features multi-channel discovery, allowing the app to automatically discover all WaveCAST units in the room and then select the desired channel. WaveCAST supports both unicast and multicast network configurations and can support up to 1500 streams, depending on proper network support.

 WIFI assistive listening system.

Receiver App

Available in the Apple App Store



Available in the Apple App Store


SPECIFICATIONS

wf t5 d

  • Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
  • Weight: Transmitter: 3.0 lbs (1.36 kg)
  • Color: Black/Silver with silver legends on the front, white legends on the back
  • Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
  • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
  • Power ON Indicator: Push On/Push Off latching power button, backlit green indicates power ON, backlight off indicates power OFF, fading from bright to dark indicates Sleep Mode.
  • Temperature Range: Operating: +32° F to +104° F (0° C to 40° C); Storage: -4° F to +158° F (-20° C to 70° C)
  • Audio Processor Functions: DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
  • Frequency Response: 31 – 16000 Hz, ±3 dB (Music Audio Preset)
  • Signal-to-Noise Ratio: Greater than or equal to 74 dB Transmitted RF
  • Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
  • Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line
  • User Interface: Front panel buttons or hosted web interface
  • Audio Inputs: (1x) Combination 3-pin XLR, 1/4" (TRS) jack for Mic or Line Level Analog Audio, Balanced or Unbalanced Line Level, or balanced or unbalanced microphone with Selectable Phantom Power
  • Audio Input Gain Adjust: In menu, adjustable to 0 to -50 dB, in 1dB steps
  • Phantom Power: 14.4 VDC applied through 2.2 kΩ resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4” TRS jack
  • Audio Level Indicators: 10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDs indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks
  • Headphone Output: 1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 Ω (level adjustable in menu 0 to -40 dB in 2 dB steps)
  • Line Output: RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 Ω
  • Input Levels (Bal or Unbal) (at Audio Input Gain = 0dB): Nominal (1st Amber LED) Overload Warning (Displayed on Screen)
  • Microphone: -55 dBV (1.7 mV RMS) -15 dBV (180 mV RMS)
  • Line: -25 dBV (55 mV RMS) +16 dBV (6.3 V RMS)
  • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
  • Operating Systems: Apple iOS 9.1 or newer; Android 6.0 or newer; Blackberry and windows not supported
  • Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme
  • Warranty: 2-year parts and labor
